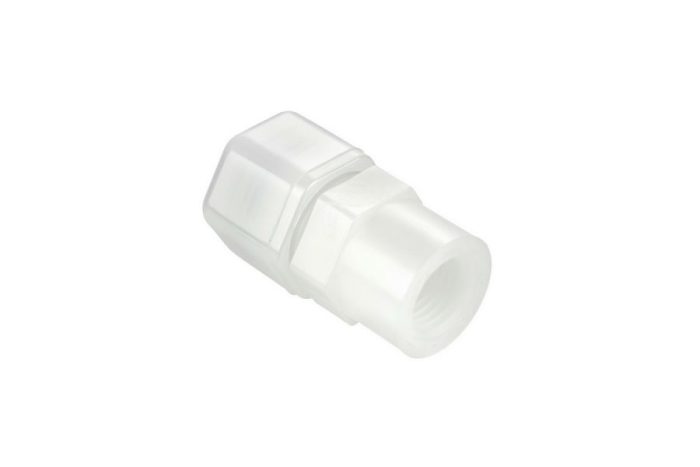

N10FC8
Parker’s Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Orientation: STRAIGHT
End 1 Type: TUBE
End 1 Size: 5/8
End 2 Type: FNPT
End 2 Size: 1/2
Description
| Configuration: | Tube to Female Pipe |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Temperature: | 200 °F, 93 °C |
| Maximum Operating Pressure: | 50 psi, 3.5 bar |
| Tube Material: | Thermoplastic, Glass, Soft Metal |
| For Fluid Type: | Water, Air, Other Compatible Fluids |
| Application: | Filtration, Purification, Dispensing |
| Gripping Ring Material: | Stainless Steel AISI 302 |
| Seal Material: | Nitrile (O-Ring) |
| Specifications Met: | FDA, NSF 51 |
| Connection 1 Type: | Compression |
| Connection 1 Tube Outside Diameter: | 5/8″ (O.D.) |
| Body Material: | Nylon |
| Connection 2 Type: | NPTF |
| Connection 2 Thread Size: | 1/2″ |
| Product Style: | Connector |
