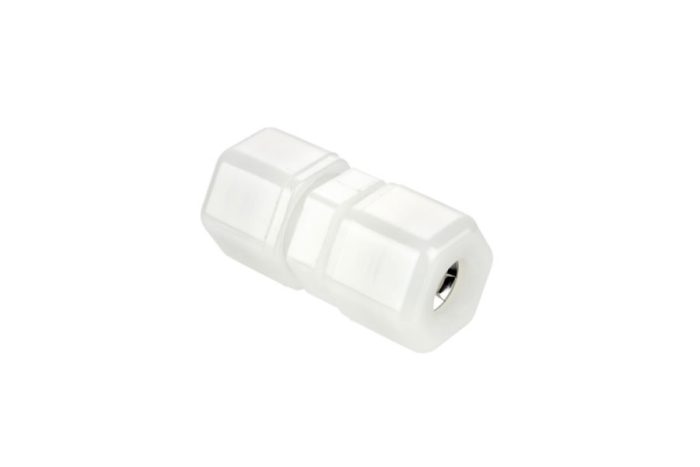

N10UC8
Parker’s Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Orientation: UNION
End 1 Type: TUBE
End 1 Size: 5/8
End 2 Type: TUBE
End 2 Size: 1/2
Description
| Connection 2 Type: | Compression |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Temperature: | 200 °F, 93 °C |
| Maximum Operating Pressure: | 50 psi, 3.5 bar |
| Tube Material: | Thermoplastic, Glass, Soft Metal |
| Media: | Water, Air, Other Compatible Fluids |
| Application: | Filtration, Purification, Dispensing |
| Gripping Ring Material: | 302 Stainless Steel |
| O-Ring Material: | Nitrile |
| Specifications Met: | FDA, NSF-51 |
| Connection 2 Tube Outside Diameter: | 1/2″ (O.D.) |
| Connection 1 Type: | Compression |
| Connection 1 Tube Outside Diameter: | 5/8″ (O.D.) |
| Body Material: | Nylon |
| Configuration: | Tube to Tube |
| Shape: | Union |
