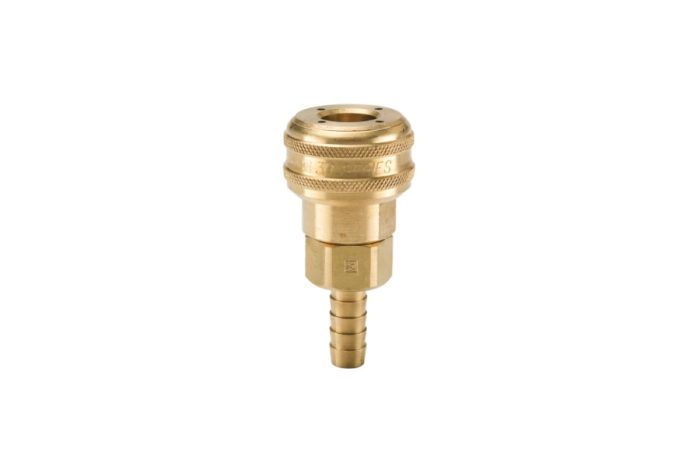

B36-7B
Orientation: STRAIGHT
End 1 Type: HOSE BARB
End 1 Size: 1/2
End 2 Size: 3/4
Description
| Body Material: | Brass |
| Maximum Operating Pressure: | 300 psi |
| Media: | Low pressure fluids and compressed air |
| Coupling Half: | Coupler |
| Connection Hose I.D. (inch): | 3/4 |
| Minimum Operating Temperature: | -40 °F |
| Maximum Operating Temperature: | 250 °F |
| Seal Material: | Nitrile |
| Valve Type: | Tubular |
| Application: | Air |
| Specifications Met: | Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B |
| Sleeve Type: | Push to connect |
| Lock Type: | Pawls |
| Thread Style: | na |
| Body Size (inch): | 1/2 |
| Connection Type: | Hose barb |
| Connection Thread Size (inch): | na |
